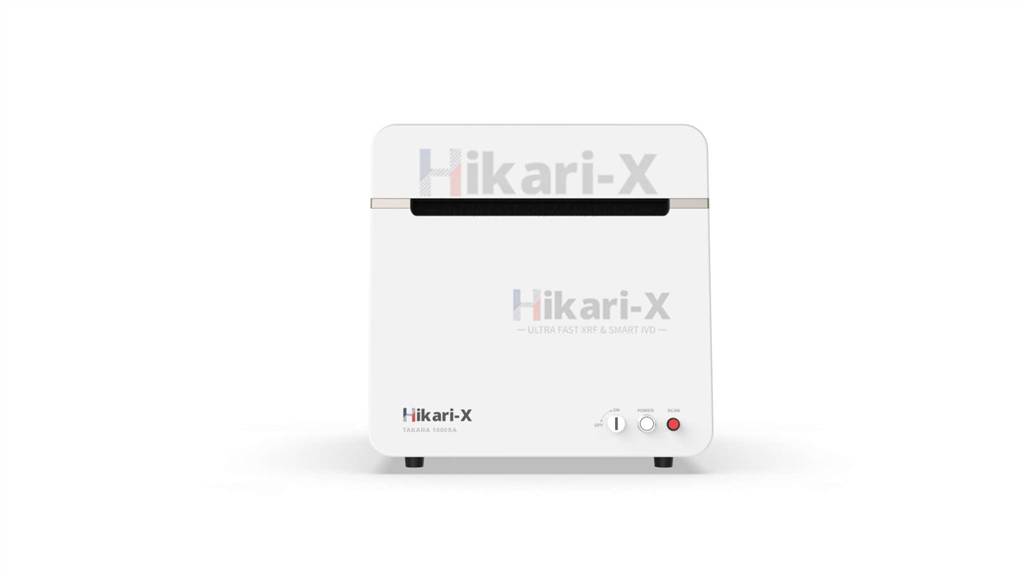

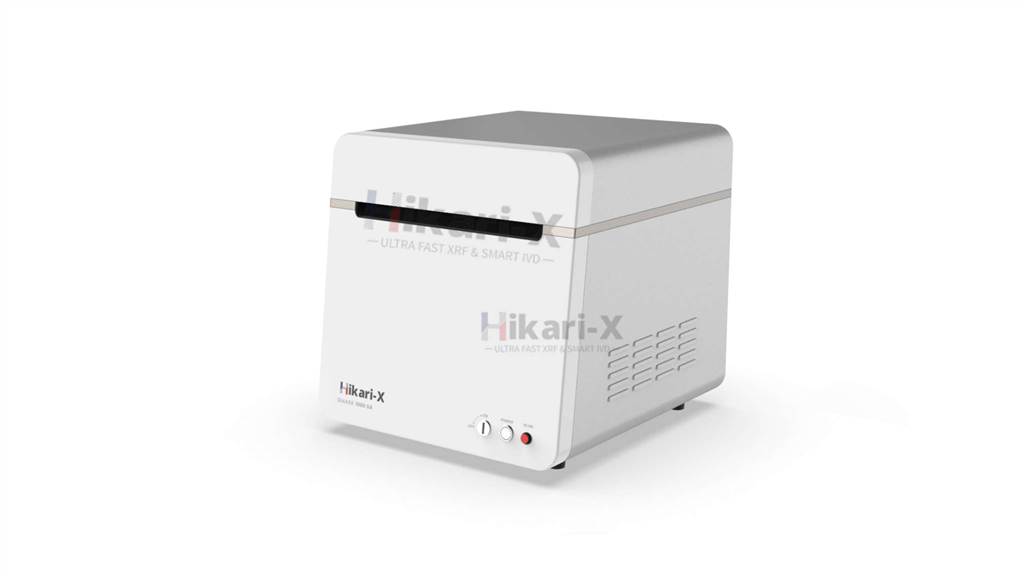

The Takara 1000SA is a new and modern X-ray Fluorescence Spectrometer for precious metals analysis and coating thickness measurement.

The Takara 1000SA is specially designed to meet the newest requriement from different customers in differernt markets such as FAST (5s-20s), ACCURATE for all kind of samples (especially high gold bar sample from 99.88% to 99.99%), LOW DETECTION LIMIT for impuries (<0.01% for Ag, Pd and <0.1% for other impurities), 2 in 1 FP software (Composition and Thickness),…

Can test Gold samples in the narrow range: 99.88%, 99.89% or 99.90%, 99.95%, 99.97%, 99,98% and 99.99%.

Analyzed Element range at a time: Up to 55 elements.

Features:

• Auto-identify elements in unknown samples (Smart ID function).
• Auto-identify and Sceen the fake gold.
• Plated vs Non-plated identification.
• Auto-Identify the elements are not calibrated in the work-curve.

Application:

• Precious metal testing: Jewelry shops, Factories, Pawnshops
• Coating thickness testing: Single layer to multi-layer (up to 8 layers)
• RoHS testing
• Alloy testing
• Mineral testing
